Customized Auger Drilling Rig, Auger Drilling Rig, Rotary Drilling Rig Single-Flute Straight Auger Bit (Toothed) For construction in clay layers,

Brand Name : WeSeW

Model Number : RG-717

Certification : CE,UL

Place of Origin : China

MOQ : 1 pc

Price : Price Negotiation

Payment Terms : T/T,Western Union

Supply Ability : 10,000 pieces per month

Delivery Time : 10-20 working day

Packaging Details : Wooden Case

Rotation Direction : Clockwise/Counterclockwise

Screw Type : Helicoid or sectional

Strength : High tensile strength

Applicable Industries : Manufacturing Plant, Energy & Mining

Usage : Conveyor

Operation Mode : Manual or automatic

Inclination Angle : 0-45 degrees

Features : Flexible design, easy to clean

Contact Now

Customized Auger Drilling Rig, Auger Drilling Rig, Rotary Drilling Rig Single-Flute Straight Auger Bit (Toothed) For construction in clay layers, highly weathered layers, and gravel layers


Warranty
2 Years
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Applicable layers
clay, high-weathered layer, gravel etc;
Drilling Dia.
600-2000 MM
Spira HIT.
1500 MM
Weight
As you requested
Bottom Type
Double bottom and double cut ,Single bottom and double cut
Advantage
High Performance

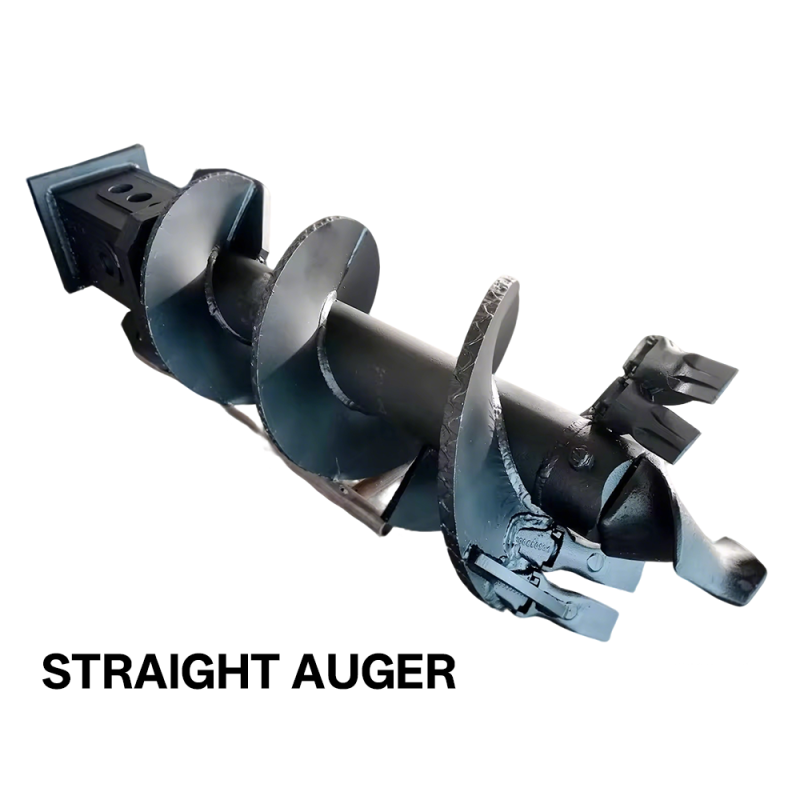

Straight Auger

1. Design as straight type, better for carry soil;
2. Double cutter bearing uniform force, can avoid inclined hole;
3. Double spiral easy to carry soil, but meet cohesive soil, single spiral is easy to dump spoil;
4. Applicable layers: clay, high-weathered layer, gravel etc;
Remark:all measurements in millimeters (mm); weight in kilograms(kg)
Pile  Dia.(mm)
Spiral HIT.(mm)
Spiral Pitch(mm)
Sprial THK.(mm)
Sprial OD.(mm)
Teeth No.
Weight (kg)
φ600
1500
600+400
30+20
550
6
550
φ800
1500
600+400
30+20
750
9
800
φ900
1550
600+500
30+20
850
10
850
φ1000
1500
600+600
30+20
950
11
900
φ1200
1500
600+600
30+30
1150
13
1250
φ1500
1500
600+600
30+30
1450
16
1750
φ1600
1500
600+600
30+30
1550
17
1900
φ1800
1500
600+600
35+30
1750
21
2600
φ2000
1500
600+600
35+30
1950
22
3050
